Managed capture
Retain a continuing history

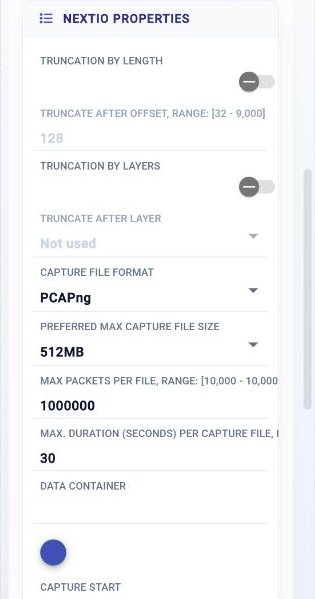

Packet Capture writes to the managed storage subsystem through a selected data container. Configure capture format, file limits, start conditions, and runtime resources.
Packet Capture controlsPackets / Capture and evidence
Keep the evidence behind every investigation.
Preserve live traffic, bring in field captures, and return to the evidence when an issue needs a closer look. 01Layer connects capture storage, targeted inspection, metadata analysis, and trace export in a shared workflow.
Retain what matters
Choose the traffic, storage destination, and capture policy.
Investigate with context
Narrow evidence by time, address, protocol, and content.
Reuse the trace
Export selected traffic or carry it into analysis and replay.
Capture choices
Select the evidence path for the job.
FlowMagic Capture Services provides managed capture, direct PCAP writing, and metadata extraction as distinct NextIO components.
PCAP writing
Create a focused trace
Packet Writer writes received traffic to a PCAP location with a file prefix and size limit. Optional timestamp reordering uses a configured window and queue capacity.
Packet Writer controlsPost-capture context
Make the evidence searchable
Metadata extracts and reports information from captured traffic. Select address, protocol, port, VLAN, and DNS indexes that support the investigation.
Metadata capabilityManaged retention
Define what you keep and how it rotates.
Capture Service supports local disks, NVMe, RAID, NAS over NFS, iSCSI block storage, and RAM-backed targets. Data containers organize the selected storage with quota and rotation behavior.
- Data container
- Prepare and enable the selected storage, create the container, and assign it to the capture component.
- Capture content
- Choose the capture file format. Optional truncation by byte offset or protocol layer changes how much of each frame is retained.
- File boundaries
- Set preferred maximum file size, maximum packets per file, and maximum duration per capture file.
- Capture runtime
- Set start conditions, worker and file-writer counts, buffer size, and compute allocation for the service.
Truncation removes evidence beyond the selected boundary. Size retention and capture content around the investigation and replay requirements.
Focused inspection
Move from the time window to the evidence.

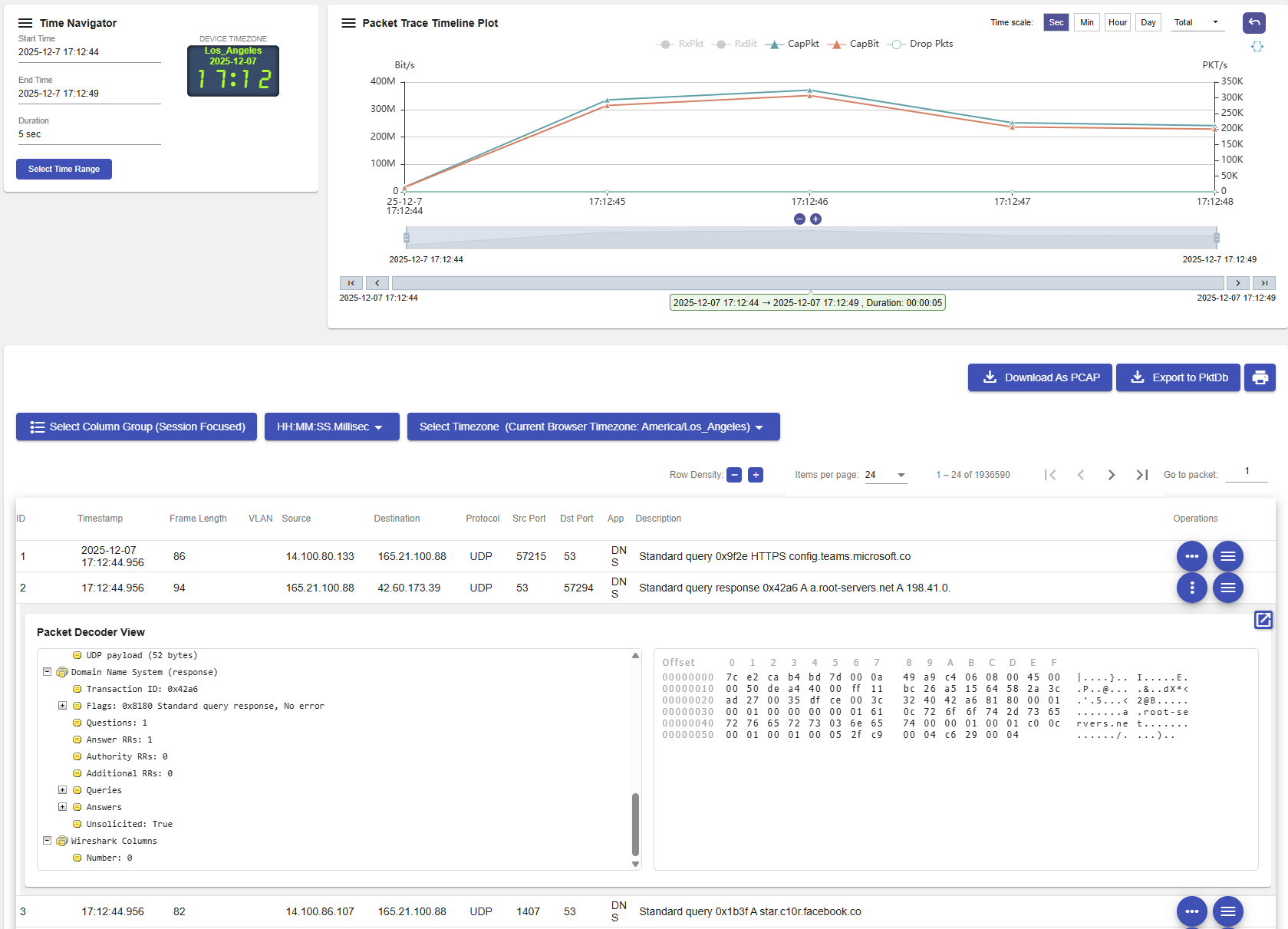

Use the timeline to isolate an event, inspect the selected traffic, and export a trace that another team can reproduce.
Narrow the investigation
Target a time window, IP address, IP list or range, BPF expression, or regular expression in the supported capture and analysis workflows. Review the protocol fields and chronology needed to explain the event.
Share a reproducible trace
Export the selected evidence as PCAP for external analysis or lab reproduction. Keep the selected source and time window with the findings so another operator can follow the same investigation.
Live evidence and field captures
Bring current and historical traffic together.
The Joint Realtime and PCAP Analysis workflow accepts remote PCAP and PCAPng uploads, monitored folders, multi-file batches, and continuing live capture.
| Source | Workflow | Investigation value |
|---|---|---|
| Live capture | Collect selected site traffic continuously. | Review current conditions while retaining evidence for later questions. |
| PCAP / PCAPng upload | Upload a remote or manually collected trace. | Bring a field observation into the same analysis environment. |
| Monitored folder | Process files arriving in a watched collection location. | Use a repeatable intake path for ongoing evidence submissions. |
| Multiple capture files | Select timestamp merge when chronology across sources matters. | Review a time-ordered traffic set for investigation, profiling, or replay. |
From capture to action
Keep the investigation connected.
Plan storage and analysis together so the needed evidence is still available when an incident is reviewed.
Select and prepare the source
Connect live traffic through the required filtering or processing path, or choose an uploaded capture set.
Set capture and retention
Choose the data container, quota, format, file boundaries, and any truncation. Align metadata and raw capture retention windows.
Focus the analysis
Select the event window and targeting criteria. Inspect protocol context, timelines, and the relevant traffic rows.
Carry the finding forward
Export a scoped trace, document the analysis in a notebook, or use replay to reproduce the condition in a validation environment.
Keep exploring
From overview to operation.
Open the function descriptions, component controls, and related workflows behind this capability.
Capture Service functionCapture component referenceJoint Realtime and PCAP AnalysisRetrospective AnalysisForensic AnalysisValidation and replay
Preserve the evidence your team needs.
Discuss the sources, service requirements, and deployment that fit your operation.
