FlowDirector FSN-400

Back to Product Catalog

Fixed ports and modular expansion

Modular service node for flexible visibility deployments. FSN-400 is available in two chassis options: FSN-400-R with up to three traffic module expansion slots, and FSN-400-F with up to two traffic module expansion slots.

  • One dedicated IPMI RJ-45 management port
  • Two 1Gb/10Gb RJ-45 ports
  • FSN-400-R: up to 3 traffic module expansion slots
  • FSN-400-F: up to 2 traffic module expansion slots
  • The FlowDirector Service Node-400 (FSN-400) is a 1U rack-mountable modular appliance that delivers higher-capacity software-defined visibility services for enterprise-scale deployments.

Platform views

Reference images for installation planning and modular interface selection.

FSN-400-R chassis views

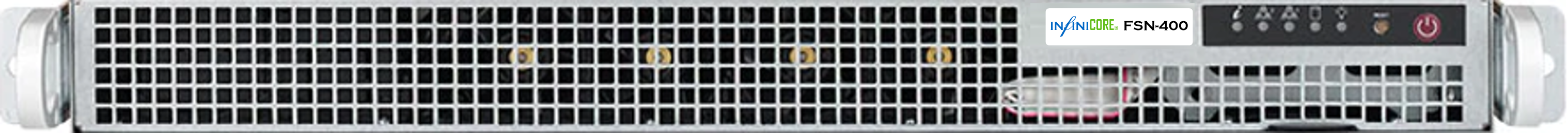

FlowDirector FSN-400-R front panel
Front panel

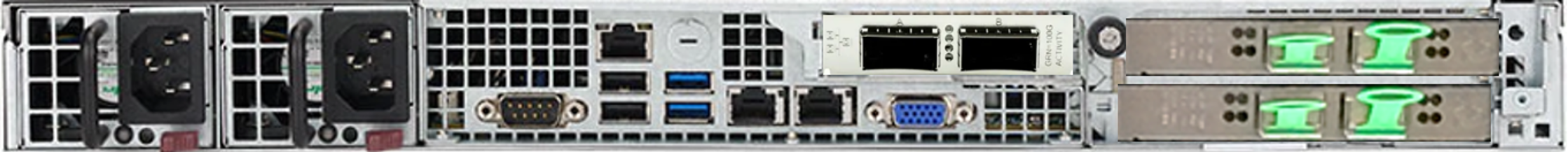

FlowDirector FSN-400-R rear panel
Rear view

Front and rear chassis references for FSN-400-R installation planning.

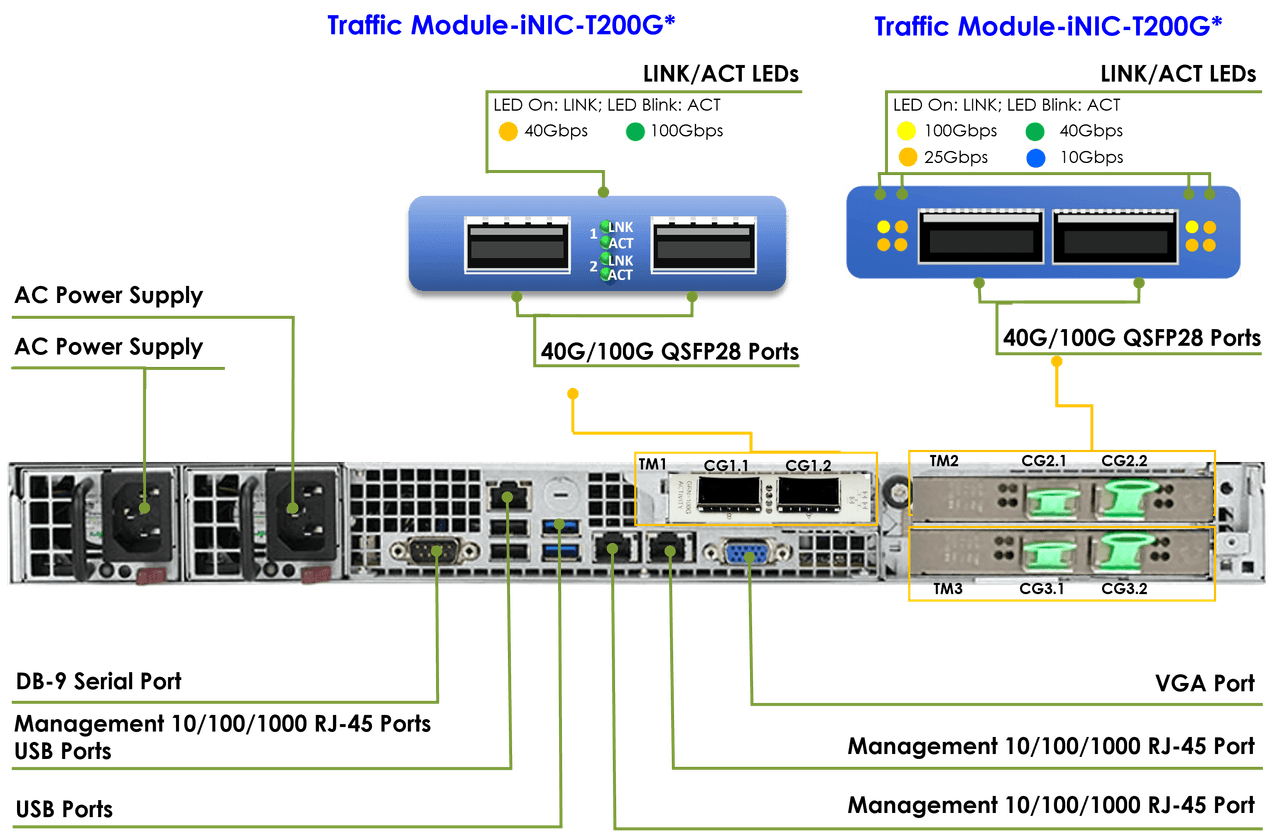

FlowDirector FSN-400 interface detail

FSN-400-R interface illustration

Detailed reference for FSN-400-R modular interface and port-position planning.

FSN-400-F chassis views

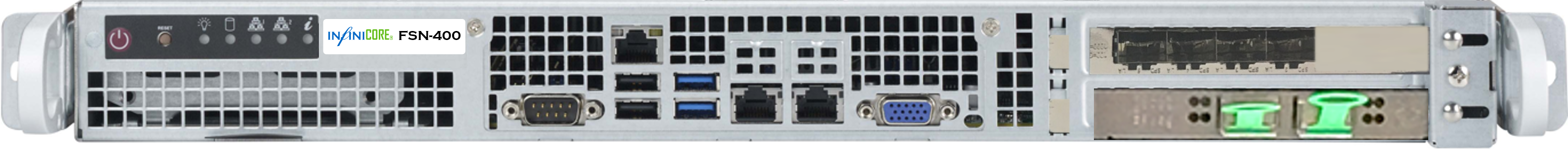

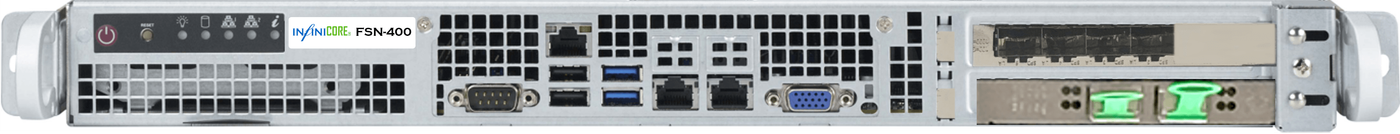

FlowDirector FSN-400-F front panel
Front panel
FlowDirector FSN-400-F rear panel
Rear view

Front and rear chassis references for FSN-400-F installation planning.

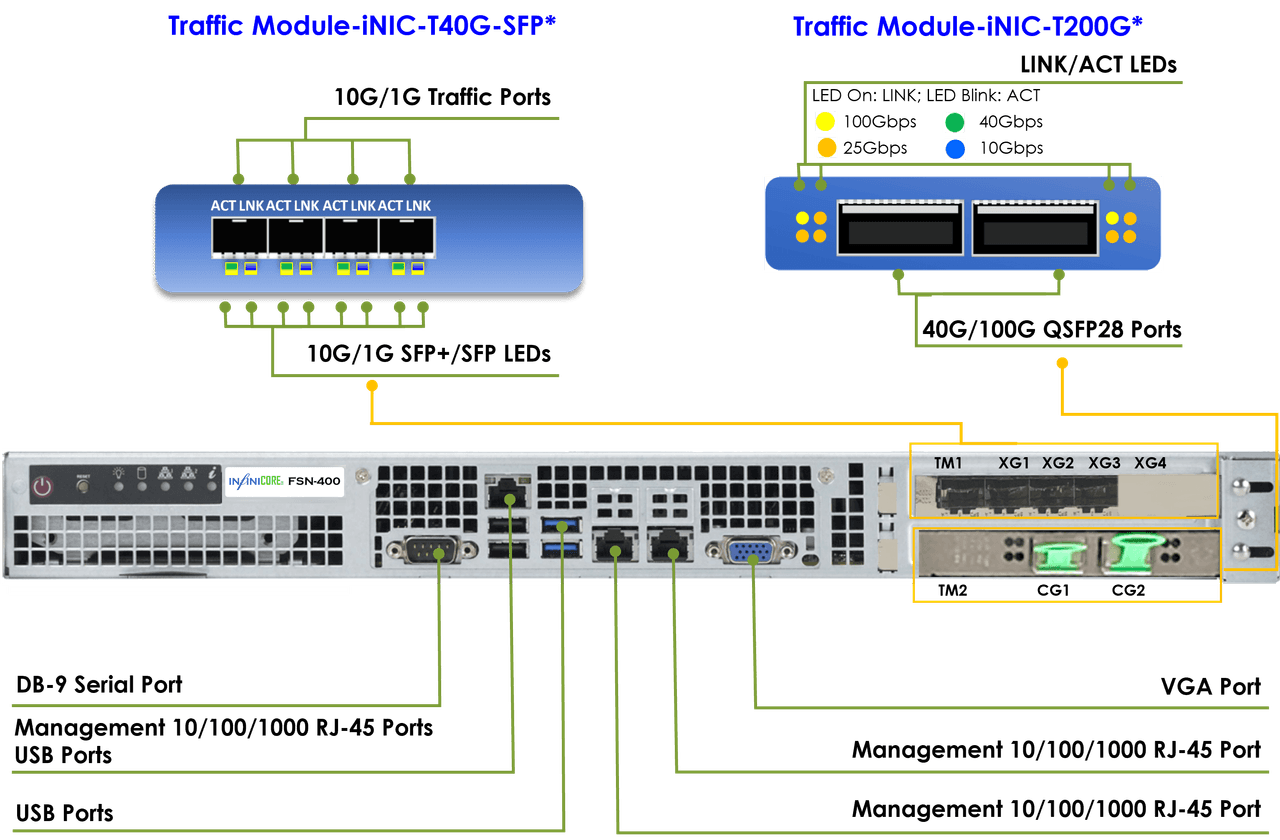

FlowDirector FSN-400-F interface detail

FSN-400-F interface illustration

Detailed reference for FSN-400-F modular interface and port-position planning.

Storage and data capture

Flexible storage options support visibility services and packet capture workflows.

System drive

  • Dedicated SSD-based system drive

Data storage options

  • One internal mount option for two high-speed M.2 NVMe SSDs, or two 2.5-inch SSDs, or two 2.5-inch HDDs
  • Packet capture requires data drive option

Network packet broker functions

Core traffic handling services for visibility fabrics.

Traffic operations

  • Traffic tagging
  • VLAN/MPLS/Cisco Fabric Path insert/removal
  • Traffic aggregation
  • Traffic replication
  • Traffic filtering
  • Load balancing

Advanced visibility

  • Packet deduplication
  • V5/V9/IPFIX NetFlow record generation
  • Advanced programmable match-action
  • VxLAN/GTP/IPIP deep tunnel processor
  • Advanced tunnel processor
  • Microburst controller
  • Packet field operator
  • Packet capture (requires data drive)

Available iNIC Traffic Modules

Module options for fiber, copper, and bypass-enabled visibility deployments.

Regular iNIC module family

Part number Port count Port specification
iNIC-T2G/T4G/T6G-RJ45 2, 4, or 6 10Mb/100Mb/1Gb RJ45 Copper
iNIC-T2G/T4G/T6G-SFP 2, 4, or 6 10Mb/100Mb/1Gb SFP Fiber
iNIC-T20G/T40G-RJ45 2 or 4 100Mb/1Gb/10Gb RJ45 Copper
iNIC-T20G/T40G-SFP 2 or 4 1Gb/10Gb SFP/SFP+ Fiber
iNIC-T50G 2 1Gb/10Gb/25Gb SFP/SFP+/SFP28 Fiber
iNIC-T80G 2 40Gb QSFP+ Fiber
iNIC-T200G 2 40Gb/100Gb QSFP+/QSFP28 Fiber

Bypass-capable iNIC modules

Module type Part number Port count Port specification
Fiber and copper bypass module iNIC-T20G/T40G-RJ45-BP 2 or 4 10Mb/100Mb/1Gb/10Gb RJ45 Copper
iNIC-T20G/T40G-SRD/LRD-BP 2 or 4 1Gb/10Gb Fiber SX/SR, LX/LR
Fiber and copper bypass module with embedded switch iNIC-T40G-RJ45-BPS 4 10Mb/100Mb/1Gb/10Gb RJ45 Copper
iNIC-T40G-SRD/LRD-BPS 4 1Gb/10Gb Fiber SX/SR, LX/LR
iNIC-T80G-SRD/LRD-BPS 2 40Gb Fiber SR4/LR4
iNIC-T200G-SRD/LRD-BPS 2 40Gb/100Gb Fiber SR4/LR4

Physical, power, and environment

Deployment-ready specifications for data center environments.

Dimensions & weight

  • 19 x 16.9 x 1.7 in (W x D x H)
  • 483 x 430 x 43 mm (W x D x H)
  • Net weight: 28 lb (13 kg)

Power

  • Redundant 1+1 400W platinum certified power supply
  • 110-240V AC, 50-60Hz

Environment

  • Operating temperature: 0º to 40º C (32º to 104º F)
  • Non-operating temperature: -40º to 70º C (-40º to 158º F)
  • Humidity: 20% to 90% (non-condensing)

Management & access

  • Management ports: 1x dedicated IPMI RJ-45 and 2x 1Gb/10Gb RJ-45
  • Serial: 1x 10/100/1000BASE-T RJ-45 and 1x Micro USB
  • User interface: command line interface, web UI (Chrome, Firefox, Safari, IE), HTTP/JSON-based API
