FlowDirector FSN-32

Back to Product Catalog

Fixed ports and modular expansion

Modular service node for flexible visibility deployments. FSN-32 includes six fixed ports and four modular slots for copper and fiber connectivity from 10/100/1000Mbps through 25Gbps.

  • Two management ports
  • Two 1Gb/10Gb SFP/SFP+ ports
  • Two 1Gb/10Gb RJ-45 ports
  • Four modular slots for 1G, 10G, and 25G options
  • The FlowDirector Service Node-32 (FSN-32) is a 1U rack-mountable modular appliance that delivers a balanced mix of port density, connectivity, and price performance for software-defined visibility services.

Platform views

Reference images for installation planning and modular interface selection.

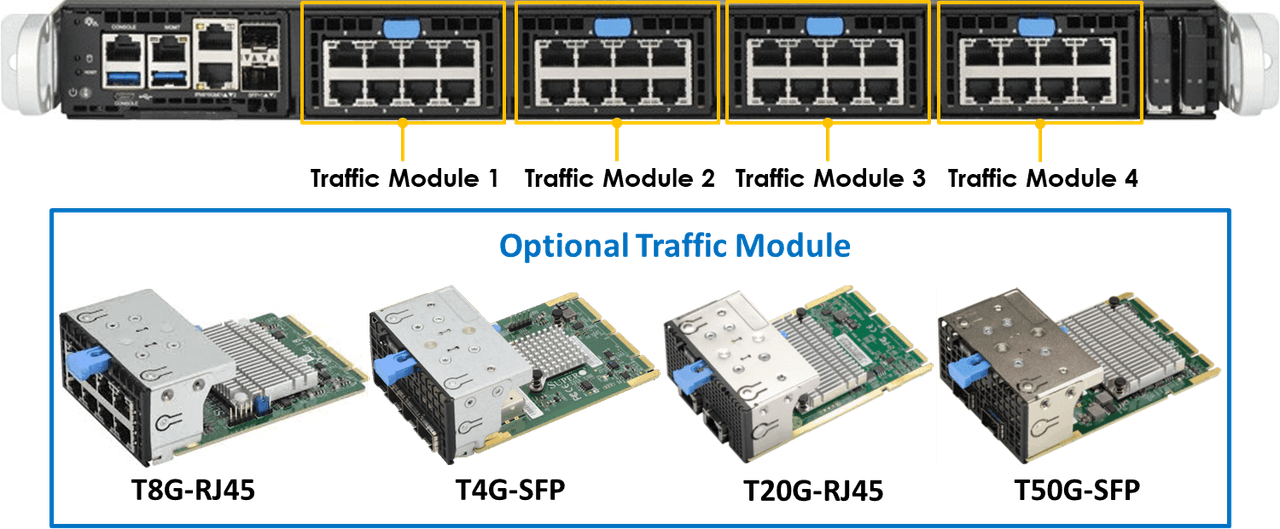

FlowDirector FSN-32 traffic module

Traffic module view

Modular interface component used to match copper or fiber deployment requirements.

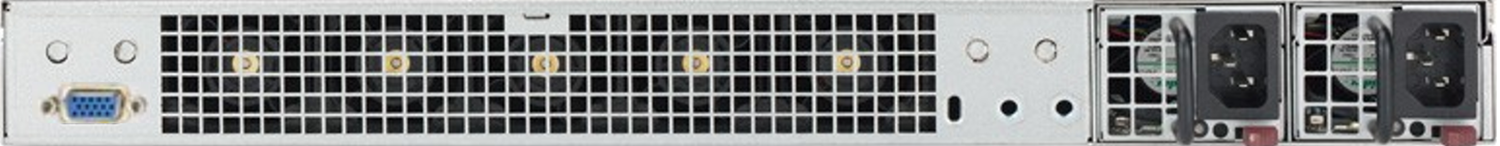

FlowDirector FSN-32 rear view

Rear view

Power, management, and interface layout reference for installation planning.

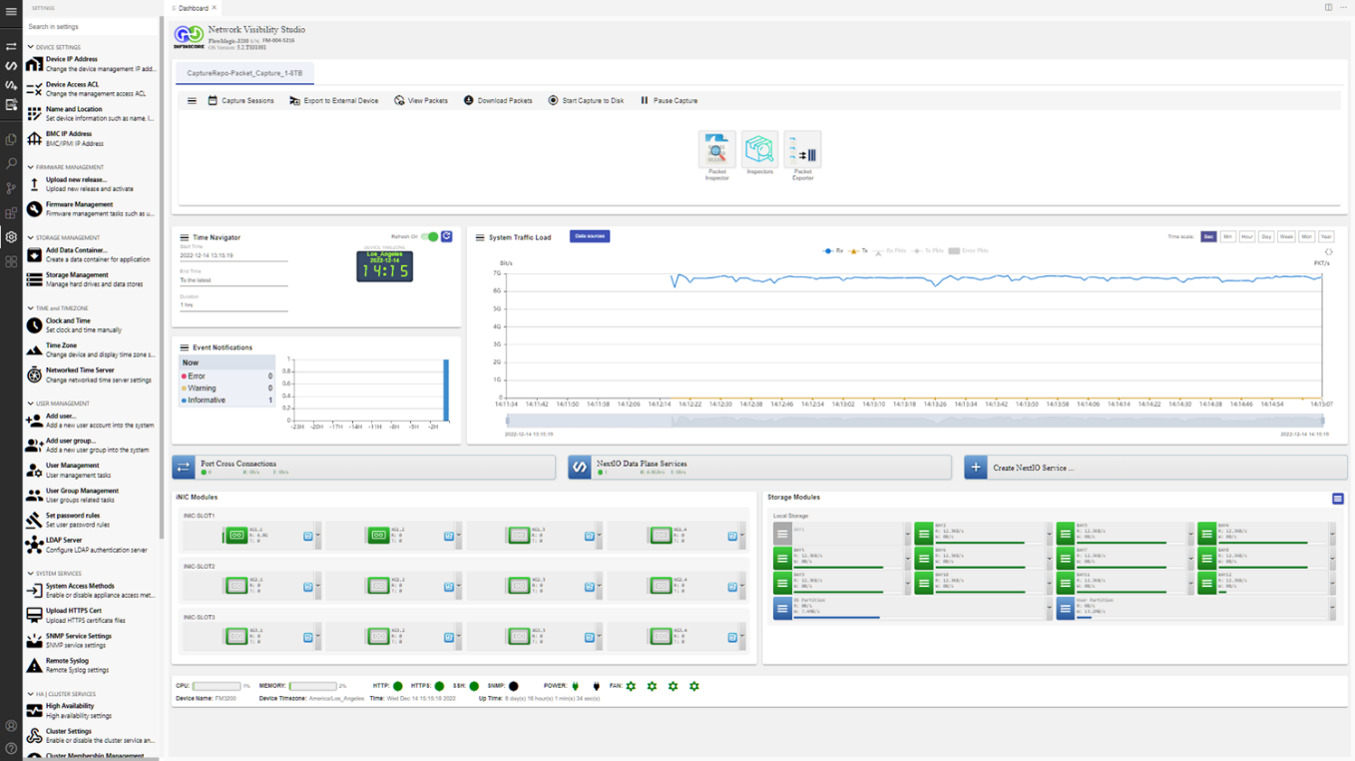

FlowDirector FSN-32 web user interface

Web UI view

Operator interface view for configuration and visibility service control.

Storage and data capture

Flexible storage options support visibility services and packet capture workflows.

System drive

  • Dedicated SSD-based system drive

Data storage options

  • Internal mount for two high-speed NVMe SSDs
  • Internal mount for one 2.5-inch hard drive
  • Packet capture requires data drive option

Network packet broker functions

Core traffic handling services for visibility fabrics.

Traffic operations

  • Traffic tagging
  • VLAN/MPLS/Cisco Fabric Path insert/removal
  • Traffic aggregation
  • Traffic replication
  • Traffic filtering
  • Load balancing

Advanced visibility

  • Packet deduplication
  • V5/V9/IPFIX NetFlow record generation
  • Advanced programmable match-action
  • VxLAN/GTP/IPIP deep tunnel processor
  • Advanced tunnel processor
  • Microburst controller
  • Packet field operator
  • Packet capture (requires data drive)

Available modular interfaces

Choose the modules that match copper or fiber connectivity requirements.

T8G-RJ45

Octo copper module

8x RJ-45 ports for 10Mb/100Mb/1Gb connectivity.

T8G-RJ45 modular interface

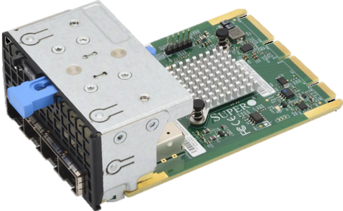

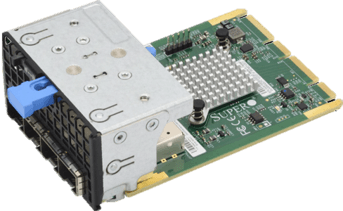

T4G-SFP

Quad SFP module

4x SFP ports for 10Mb/100Mb/1Gb connectivity.

T4G-SFP modular interface

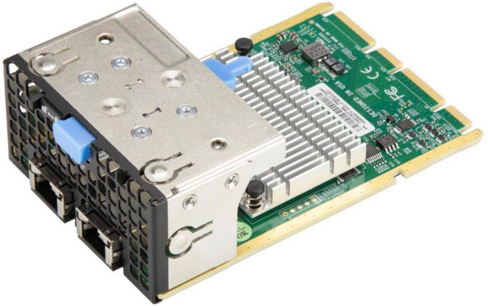

T20G-RJ45

Dual 10G copper

2x RJ-45 ports for 100Mb/1Gb/10Gb connectivity.

T20G-RJ45 modular interface

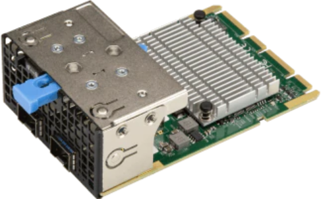

T50G-SFP

Dual SFP/SFP+/SFP28

2x SFP/SFP+/SFP28 ports for 1Gb/10Gb/25Gb connectivity.

T50G-SFP modular interface

Physical, power, and environment

Deployment-ready specifications for data center environments.

Dimensions & weight

  • 19 x 15 x 1.75 in (W x D x H)
  • 483 x 381 x 43 mm (W x D x H)
  • Net weight: 28 lb (13 kg)

Power

  • Redundant 1+1 400W platinum certified power supply
  • 110-240V AC, 50-60Hz

Environment

  • Operating temperature: 0º to 40º C (32º to 104º F)
  • Non-operating temperature: -40º to 70º C (-40º to 158º F)
  • Humidity: 20% to 90% (non-condensing)

Management & access

  • Management port: 1x 10/100/1000BASE-T RJ-45
  • Serial: 1x 10/100/1000BASE-T RJ-45 and 1x Micro USB
  • User interface: command line interface, web UI (Chrome, Firefox, Safari, IE), HTTP/JSON-based API
