FlowDirector FSN-3200

Back to Product Catalog

Fixed ports and modular expansion

FSN-3200 is a 2U rack-mountable modular service node built for high-density visibility fabrics. Six traffic module slots let teams combine copper and fiber interfaces across 1Gb, 10Gb, 25Gb, 40Gb, and 100Gb monitoring, brokering, capture, and service workflows.

  • Up to thirty six 1/10Gb SFP+/RJ45 ports
  • Up to twenty 1/10/25Gb SFP28 ports
  • Up to eight 40/100Gb QSFP28 ports
  • Up to 6 traffic modules in one chassis
  • The FlowDirector Service Node-3200 (FSN-3200) is a 2U rack-mountable modular appliance that delivers high port density and higher-capacity software-defined visibility services for enterprise-scale deployments.

Platform views

Reference views for rack planning and modular interface placement across the 12-bay and 24-bay chassis configurations.

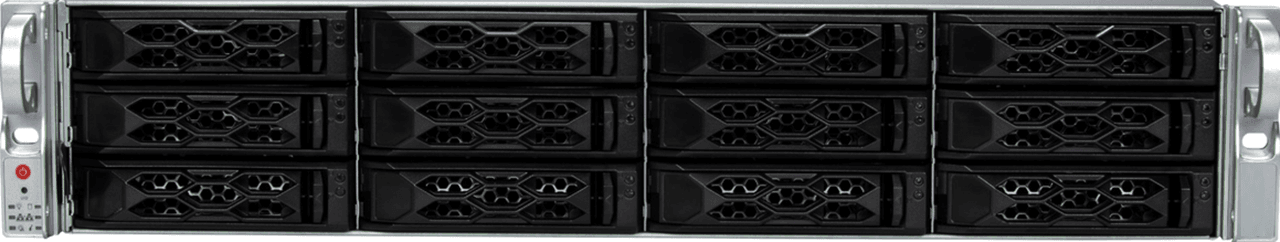

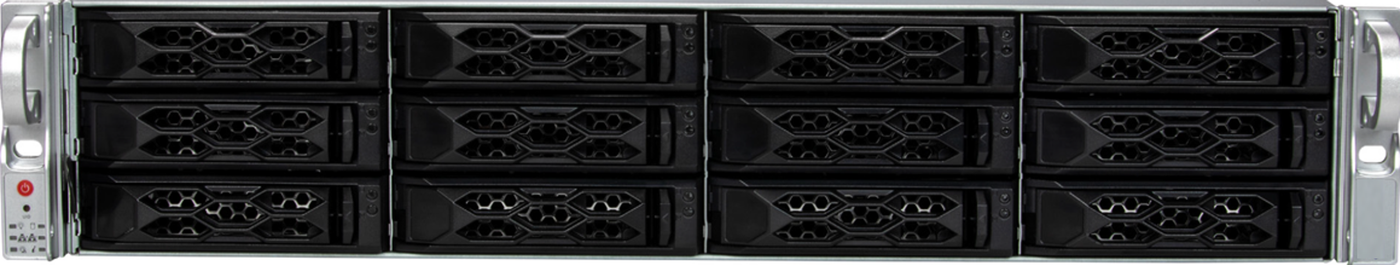

FSN-3200-12 front view

FlowDirector FSN-3200-12 front view

Front-panel reference for the 12-bay platform with 3.5-inch hot-swappable data drives.

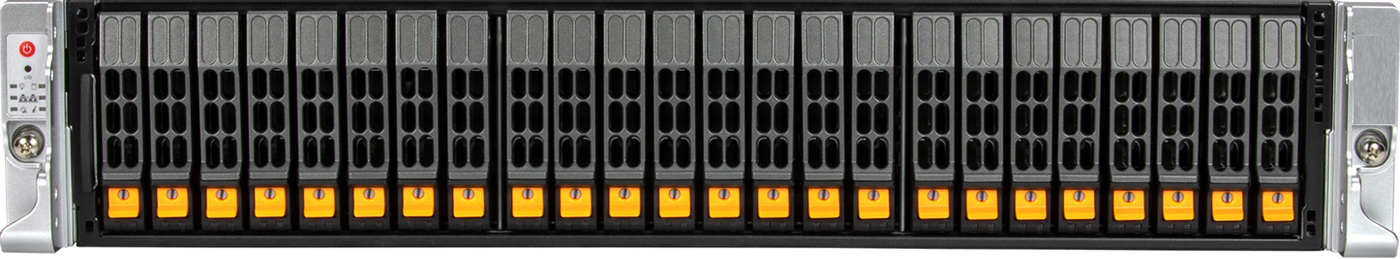

FSN-3200-24 front view

FlowDirector FSN-3200-24 front panel

Front-panel reference for the 24-bay platform with 2.5-inch hot-swappable data drives.

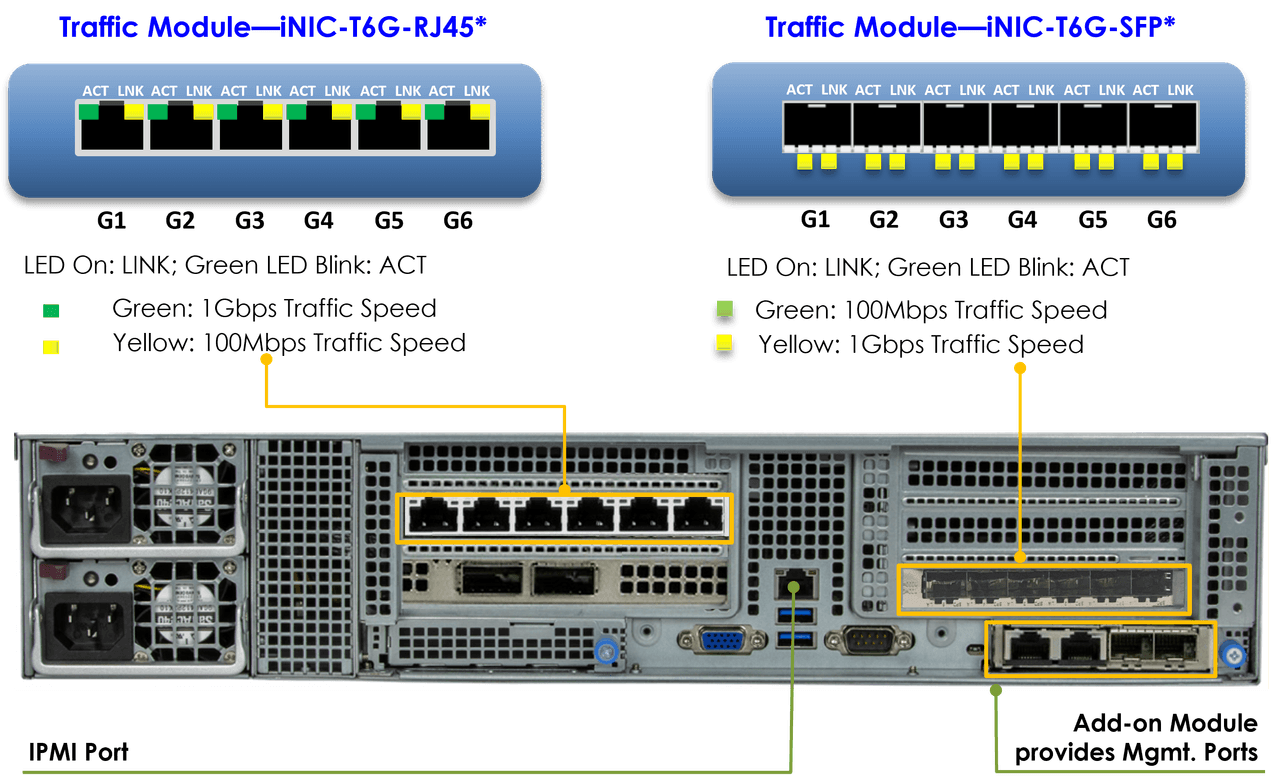

FlowDirector FSN-3200 rear panel interface detail

FSN-3200 interface illustration

Shared rear-panel interface reference for FSN-3200-12 and FSN-3200-24, including six modular traffic slots and fixed platform connectivity.

Storage and data capture

The platform separates operating media from retention storage so packet broker, service chaining, and packet recording workflows can run in the same appliance.

System storage

  • One or two dedicated SSD-based system drive(s)
  • System media remains separate from packet capture retention storage

Capture storage options

  • FSN-3200-12 supports 12 x 3.5-inch external hot-swappable data drives
  • FSN-3200-24 supports 24 x 2.5-inch external hot-swappable data drives
  • Packet capture requires a data drive option

Network packet broker functions

FSN-3200 combines FlowDirector packet broker services with advanced visibility functions, so each interface can be assigned to traffic ingress or egress, NetFlow export, or network-attached storage connectivity roles.

Interface roles

  • Traffic ingress/Egress port
  • Interface to send NetFlow record
  • Interface to connect to network attached storage

Traffic module options

  • Up to 6 modules for FSN-3200
  • Regular copper and fiber iNIC modules for 1/10/25/40/100Gbps interfaces
  • Bypass-capable copper and fiber iNIC modules for 1/10/40/100Gbps interfaces
  • Bypass plus embedded switch module options for 1/10/40/100Gbps interfaces

Traffic operations

  • Traffic tagging
  • VLAN/MPLS/Cisco Fabric Path Insert/Removal
  • Traffic Aggregation
  • Traffic Replication
  • Traffic Filter
  • Load balance

Advanced visibility

  • Packet Deduplication
  • V5/V9/IPFIX NetFlow Record Generation
  • Advanced Programmable Match-Action
  • VxLAN/GTP/IPIP Deep Tunnel Processor
  • Advanced Tunnel Processor
  • Microburst Controller
  • Packet Field Operator
  • Packet Capture (requires data drive option)

Available iNIC Traffic Modules

Module options for fiber, copper, and bypass-enabled visibility deployments.

Regular iNIC module family

Part number Port count Port specification
iNIC-T2G/T4G/T6G-RJ45 2, 4, or 6 10Mb/100Mb/1Gb RJ45 Copper
iNIC-T2G/T4G/T6G-SFP 2, 4, or 6 10Mb/100Mb/1Gb SFP Fiber
iNIC-T20G/T40G-RJ45 2 or 4 100Mb/1Gb/10Gb RJ45 Copper
iNIC-T20G/T40G-SFP 2 or 4 1Gb/10Gb SFP/SFP+ Fiber
NIC-T2x25G 2 1Gb/10Gb/25Gb SFP/SFP+/SFP28 Fiber
iNIC-T4X25G 4 1Gb/10Gb/25Gb SFP/SFP+/SFP28 Fiber
iNIC-T80G 2 40Gb QSFP+ Fiber
iNIC-T200G 2 40Gb/100Gb QSFP+/QSFP28 Fiber

Bypass-capable iNIC modules

Module type Part number Port count Port specification
Fiber and copper bypass module iNIC-T20G/T40G-RJ45-BP 2 or 4 10Mb/100Mb/1Gb/10Gb RJ45 Copper
iNIC-T20G/T40G-SRD/LRD-BP 2 or 4 1Gb/10Gb Fiber SX/SR, LX/LR
Fiber and copper bypass module with embedded switch iNIC-T40G-RJ45-BPS 4 10Mb/100Mb/1Gb/10Gb RJ45 Copper
iNIC-T40G-SRD/LRD-BPS 4 1Gb/10Gb Fiber SX/SR, LX/LR
iNIC-T80G-SRD/LRD-BPS 2 40Gb Fiber SR4/LR4
iNIC-T200G-SRD/LRD-BPS 2 40Gb/100Gb Fiber SR4/LR4

Physical, power, and environment

Deployment-ready specifications for data center environments.

Dimensions & weight

  • 19 x 25.5 x 3.5 in (W x D x H)
  • 483 x 650 x 89 mm (W x D x H)
  • Net weight: 40 lb (18 kg)

Power

  • Redundant 1+1 1200W titanuim level power supply
  • 110-240V AC, 50-60Hz

Environment

  • Operating temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating temperature: -40º to 70º C (-40º to 158º F)
  • Humidity: 20% to 90% (non-condensing)

Management & access

  • Management ports: 1x dedicated IPMI RJ-45 and 2x 1Gb/10Gb RJ-45
  • Serial: 1x 10/100/1000BASE-T RJ-45 and 1x Micro USB
  • User interface: command line interface, web UI (Chrome, Firefox, Safari, IE), HTTP/JSON-based API
