Product Detail

FlowDirector-640G

Back to Product Catalog

Product Brief and Datasheet

InfiniCORE FlowDirector-640 Product Brief
InfiniCORE FlowDirector-640 Datasheet

Solutions

Building Next Generation Lab
Next Generation Monitoring And Forensic Infrastructure
Boost Engineers Productivity in 10/40G Era

SFP+/QSFP+ Ports with EDC support

  • Support 48x 1G/2.5G/10G SFP+ and 4x 40G QSFP+ Ports
  • Up to 1.28Tbps of Hardware Ensured Line Rate Packet Operations
  • Support EDC and up to 10m DAC cables
  • Proven Interoperability
  • Support Jumbo Frames

Management Port

  • Dedicated management interface
  • Tri-Speed 10/100/1000Mbps
  • Support Jumbo Frames

Console Port

  • RJ-45 Serial Port with DB-9 to RJ-45 Serial Cable Included
  • 115200 baud 8 Bit Data 1 Bit Stop
  • No Parity Bit

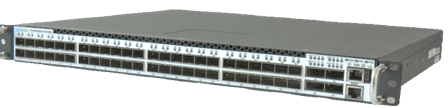

Physical Size and Weight

  • Height:1.75 inches(4.4cm)
  • Width:17.25 inches(44cm) without mounting kit
  • Width:19 inches(48.5cm) with mounting kit
  • Depth:17.25 inches(44cm)
  • Net Weight:18.7 pounds(8.5kg)

Typical Supported Flow Domains

  • Virtual Wire
  • Virtual Wire with Converged Tap
  • Virtual Wire with Independent Tap
  • Traffic Replication with Filters
  • Traffic Aggregation with Filters
  • Traffic Aggregation with Reverse Switching
  • Traffic Aggregation and Load Balancing
  • Traffic Aggregation with Replication
  • L2/L3 Switch Mode
  • And much more

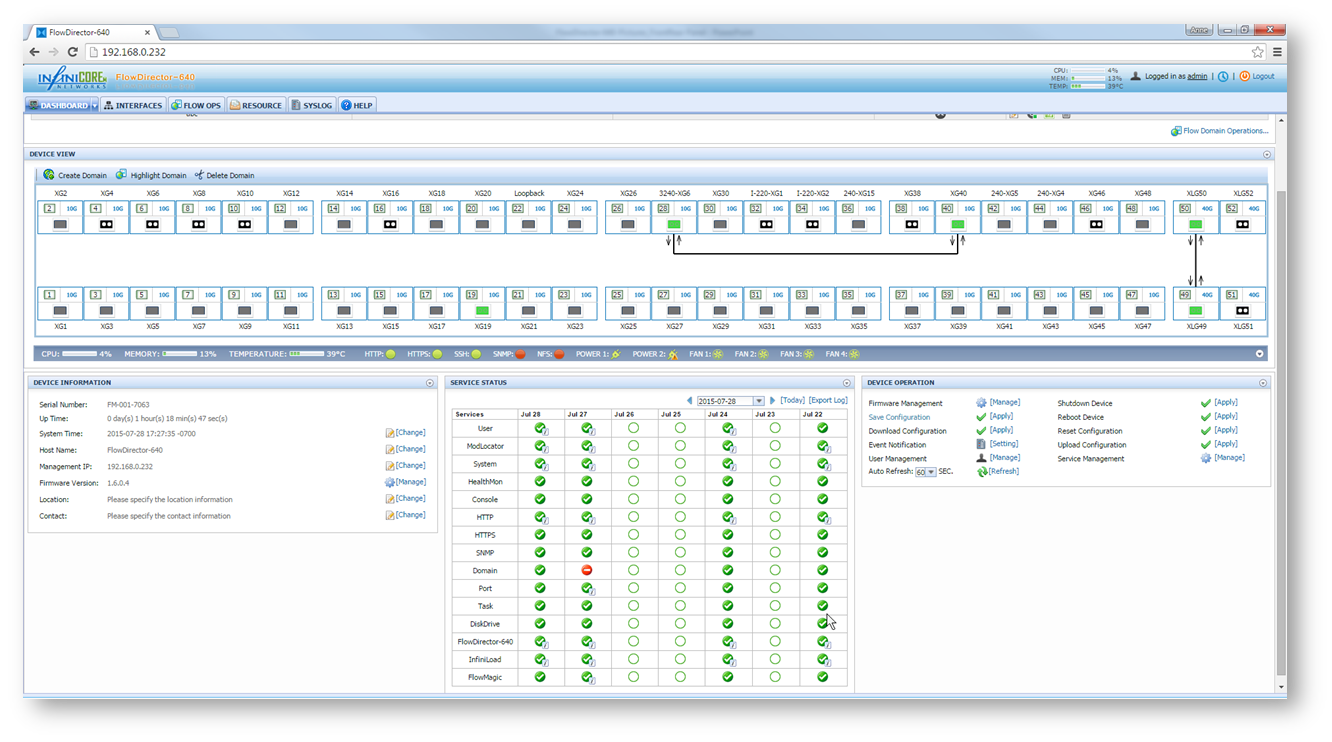

User Interface

  • Command Line Interface
  • Web Based User Interface, Supporting Chrome, Firefox, Safari, IE
  • HTTP/JSON based API

Wide Variety of Protocols Support

  • TRILL, MPLS, VPWS, Q-in-Q, MAC-in-MAC
  • IPv4, IPv6, GRE, ECMP, TCP, UDP
  • IGMPv1, IGMPv2, IGMPv3, VEPA+
