Product Detail

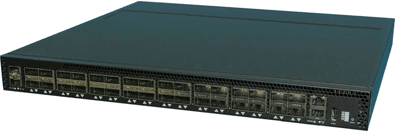

FlowDirector-3200-F

Back to Product Catalog

Product Brief and Datasheet

InfiniCORE FlowDirector-3200-F Product Brief
InfiniCORE FlowDirector-3200-F Datasheet

QSFP+/QSFP28 Ports with EDC support

  • Support 32x 40G/100G QSFP+/QSFP28 Ports
  • Up to 6.4Tbps of Hardware Ensured Line Rate Packet Operations
  • Support EDC and up to 3m DAC cables
  • Proven Interoperability
  • Support Jumbo Frames

Management Port

  • Dedicated management interface
  • Tri-Speed 10/100/1000Mbps
  • Support Jumbo Frames

Console Port

  • RJ-45 Serial Port with DB-9 to RJ-45 Serial Cable Included
  • 115200 baud 8 Bit Data 1 Bit Stop
  • No Parity Bit

Physical Size and Weight

  • Height:1.75 inches(4.4cm)
  • Width:17.25 inches(44cm) without mounting kit
  • Width:19 inches(48.5cm) with mounting kit
  • Depth:17.3 inches(44cm)
  • Net Weight:19.5 pounds(8.8kg)

Typical Supported Flow Domains

  • Virtual Wire
  • Virtual Wire with Converged Tap
  • Virtual Wire with Independent Tap
  • Inline Traffic Split and Merge
  • Traffic Replication with Filters
  • Traffic Aggregation with Filters
  • Traffic Aggregation with Reverse Switching
  • Traffic Aggregation and Load Balancing
  • Traffic Aggregation with Replication
  • L2/L3 Switch Mode
  • And much more

User Interface

  • Command Line Interface

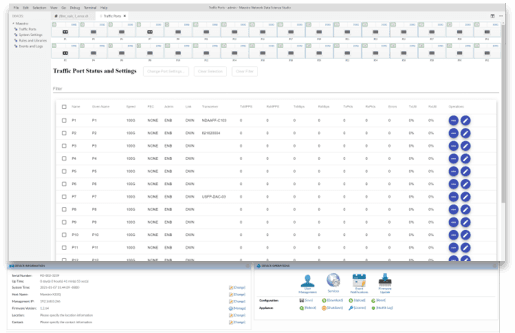

  • Web Based User Interface, Supporting Chrome, Firefox, Safari, IE
  • HTTP/JSON based API

Wide Variety of Protocols Support

  • MPLS, Q-in-Q, IPv4, IPv6
  • VxLAN, GTP, GRE
  • Flexible VLAN
