Infiniload-220E 10G L2-L7 Network Traffic Simulator

[Sales Inquiry...]

As networks, applications and services are converging to a single IP based infrastructure. Network equipment manufacturers, data center operators, service providers and enterprises are under the pressure to deliver products with superior reliability, interoperability and performance.

Infinicore’s Infiniload™-220E Testing appliance provides an unified testing platform for customers to deliver a full range of L2-L7 test solutions for data, signaling, voice, video and security applications.

Empowered by its unique hardware architecture, Infiniload™-220E is capable of generating 10G line rate stateless traffic as well as complex stateful application traffic. A single Infiniload™ appliance is able to simulate millions of IPs and millions of connections with more than 500K TCP connection setup and tear down rate.

Product Brief

Infiniload™ - 1/10 Gbps L2-L7 Converged Network Testing Appliance

Solutions

100Gbps Cloud Scale Traffic Simulation
Comprehensive Network Gateway Testing Solution
From Testcase Design to Automation

Dual 10G SFP+ Testing Ports

  • 10GBps Line Rate Traffic Generation
  • Fully support EDC and up to 10 meters DAC cable
  • Proven Interoperability
  • Support up to 10,000 bytes of Jumbo Frames

Dual 1G RJ-45 Testing Ports

  • Up to 1GBps Line Rate Traffic Generation
  • Tri-Speed 10/100/1000Mbps
  • Auto Negotiation or force speed mode
  • Support up to 10,000 bytes Jumbo Frames

Management Port

  • Dedicated robust management interface
  • Tri-Speed 10/100/1000Mbps
  • Auto Negotiation
  • Powerful management software

Console Port

  • Standard DB-9 Serial Port
  • Popular 9600 baud 8N1 setup
  • Easy to use Cisco style CLI
  • Robust first contact to manage your appliance

Physical Size and Weight

  • Height:1.75 inches(4.4cm)
  • Width:16.9 inches(43cm) without mounting kit
  • Width:19 inches(48.3cm) with mounting kit
  • Depth:11.8 inches(30cm)
  • Weight:9.5 pounds(4.3kg)

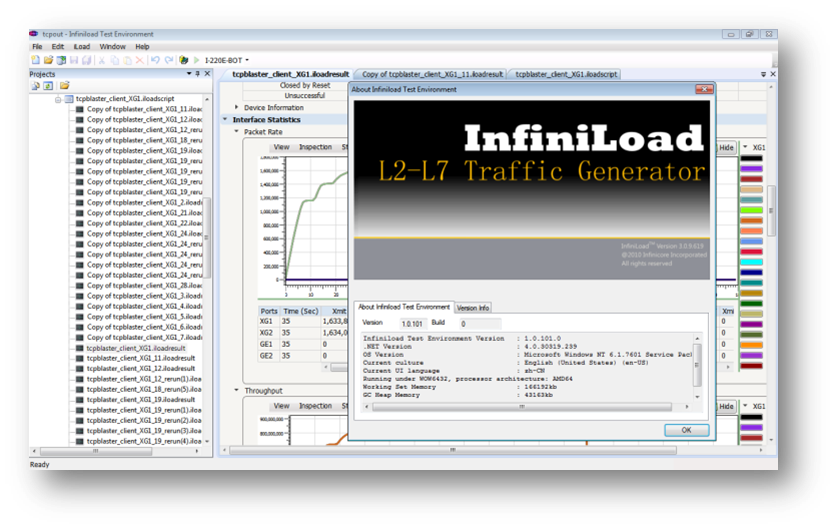

Comprehensive Easy to Use User Interface

  • Command Line Interface
  • Embedded Web GUI
  • Infiniload™ Test Design Environment
  • Infiniload™ Test Automation Environment

Base Packages

  • Stateless Traffic Generation
  • Stateful Traffic Generation
  • Infiniload™ Test Design Environment
  • Infiniload™ Test Automation Environment

Stateless Traffic Generation

  • 14.88 Mpps Per 10 Gigabit Interface
  • 1.488 Mpps Per 1 Gigabit Interface
  • 64 — 10,000 Bytes

IEEE802.1q — Virtual LAN

IEEE802.1QinQ — QinQ Virtual LAN

RFC826 — Address Resolution Protocol

RFC791 — Internet Protocol Version 4 (IPv4)

RFC792 — Internet Control Message Protocol Version 4

RFC768 — User Datagram Protocol (UDP)

RFC793 — Transmission Control Protocol (TCP)

RFC2460 — Internet Protocol Version 6 (IPv6)

RFC3376 — Internet Group Management Protocol (IGMP)

RFC2544 — Benchmarking Methodology for Network Interconnect Devices

Stateful Traffic Generation

  • TCPBlaster Client and Server Modules
  • 10 Gbps Throughput
  • Up to 500,000/sec Session Setup Rate
  • 4M Concurrent Sessions
  • HTTPBlaster Client and Server Modules
  • Up to 350,000/sec Session Setup Rate
  • 4M Concurrent Sessions
  • Support of HTTP 1.0 & 1.1

Environmental Specifications

  • 00-240V, 50-60 Hz, 250W 80 PLUS Certification
  • 85W, 80 Plus Power Supply
  • FCC Class A, Part 15
  • Operation Temperature: 0 to 40 degree C, 32 to 104 degree F
  • Storage Temperature: -25 to 70 degree C, -13 to 158 degree F
  • Humidity: 5 to 95% non-condensing
